Smart Access & Monitoring System — SAMS
An 8051 access-control and environmental-monitoring design combining PIN authentication, sensor inputs, event logging and emergency override.
Engineering case study
The engineering brief
Bring access decisions and environmental monitoring into one controller design while retaining an emergency override and a record of events.
SAMS brings access control and environmental monitoring into one 8051 academic design. Its scope includes multi-level PIN authentication, temperature and light sensing, an interrupt-driven emergency override and event logging. The project is documented through a Proteus circuit schematic; physical implementation remains unverified.
Access, monitoring & event handling
- Defined multi-level PIN authentication through a 4×3 keypad, with LCD/LED feedback and a relay interface for door control.
- Included LM35 temperature and LDR light inputs in the monitoring architecture.
- Specified an interrupt-driven emergency override and hardware-timer use alongside the normal access and monitoring functions.
- Included FIFO/circular-buffer event logging in the software scope and brought the controller, keypad, sensing, feedback and relay connections together in Proteus.
Design constraints
- Authentication, sensing and feedback share the controller, while the emergency input requires a distinct interrupt-driven response.
- The schematic establishes circuit-design evidence; it does not establish physical installation, measured sensor performance or deployed access security.
Work & results in context

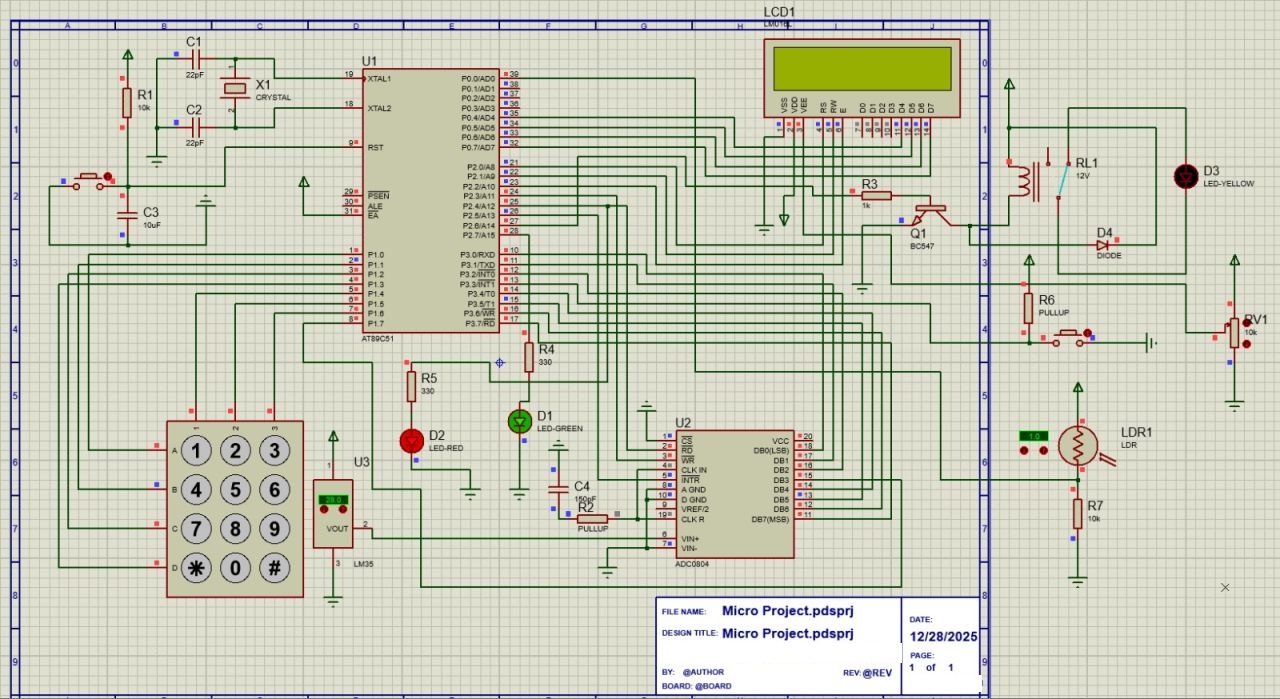

- Documented the proposed circuit integration in Proteus, including keypad, LCD, sensor and relay interfaces.
- Established the academic scope for authentication, interrupts, timers and buffered event logging. Hardware implementation is not confirmed in the available record.
Engineering takeaways
- Access control and monitoring involve more than a PIN check: emergency response, user feedback and event handling also shape the controller design.
Further work
- Further development would require a documented physical implementation and validation of access, sensor, logging and emergency-override behaviour.
